Flare-On 6 CTF WriteUp (Part 6)

This is the sixth part of the Flare-On 6 CTF WriteUp Series.

6 - bmphide

The challenge reads

Tyler Dean hiked up Mt. Elbert (Colorado's tallest mountain) at 2am to capture this picture at the perfect time. Never skip leg day. We found this picture and executable on a thumb drive he left at the trail head. Can he be trusted?
Figure 1: Mt. Elbert trail at 2AM!

We have a .NET executable named bmphide.exe and an associated BMP image which looks like Figure 1. Running the binary, it quits with an IndexOutOfRangeException.

Figure 2: The binary exits with an exception

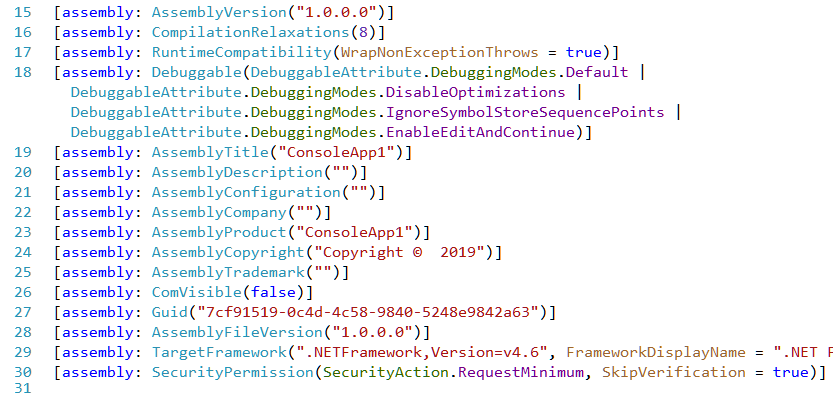

Let us load the binary in dnSpy and check the decompiled code.

Figure 3: The Main method

In Main we can see that it accesses args[0], args[1] and args[2]. The reason for the IndexOutOfRangeException is because we hadn't provided any argument. These three arguments are file paths. Among them args[0] and args[2] are path to BMP files with the former being an input file and the latter an output file. We can infer this from the use of the Bitmap on the paths. The other argument viz. args[1] can be any existing file.

To test our understanding, lets try on a sample bmp shown in Figure 4.

Figure 4: Photo by SpaceX on Unsplash
D:\> echo ABCDEFGH123456 > test.txt

D:\> dir /b *.txt *.bmp
test.txt

D:\> bmphide.exe input.bmp test.txt output.bmp

D:\> certutil.exe -hashfile input.bmp MD5
MD5 hash of file input.bmp:
ff 51 29 a5 26 01 6c 1f 5c c8 b5 63 8c f1 8a 88
CertUtil: -hashfile command completed successfully.

D:\> certutil.exe -hashfile output.bmp MD5
MD5 hash of file output.bmp:
db 8c 13 1c 33 cf f6 df ad 87 6a 43 d9 f1 d0 41
CertUtil: -hashfile command completed successfully.

output.bmp is visually identical to input.bmp although their md5 hashes differ. This is a typical steganographic challenge where we need to recover the hidden information encoded in the image. Let's resume our analysis from where we left.

Figure 5: The Init method

From Main we have a call to Init which looks like Figure 5. It loops over all the methods in the Class A while calling RuntimeHelpers.PrepareMethod on each of them.

The CLR (Common Language Runtime) manages the execution of .NET programs. Unlike typical native executables, .NET binaries doesn't contain machine code. Instead, they contain a platform independent representation of the instructions (bytecode in Java parlance) known as CIL (Common Intermediate Language) which is understood by the CLR. At runtime the CLR converts the CIL to machine code for the processor it is running on. This process is called JIT (Just In Time). For performance reasons, the CLR does not converts the entire CIL to machine code at one go. Instead it does it on demand as more and more parts of the program are executed for the first time.

The PrepareMethod function provides a way to force JITing a method before it's executed. In normal programs calling this method is not necessary and it's best to leave the decision of JITing on the CLR. However obfuscators, code protectors and malware may rely on this for their work.

Figure 6: The CalculateStack method

Next from Init we have a call to CalculateStack. This method identifies the framework version on which it is running by querying the Environment.Version property.

The IdentifyLocals method does something interesting.

Figure 7: The IdentifyLocals method

Based on the framework version its loads a library and obtains the address of an exported function which is then converted to a Delegate. Much of this code has been taken from the open source .NET protector ConfuserEx. The above snippet can be found in the AntiTamperJIT class. We can refer to that for better understanding.

Depending on the version of .NET, it loads clrjit.dll or mscorjit.dll  and calls the exported function getJit as shown in Figure 8.

Figure 8: Calling getJit

getJit returns a pointer to the ICorJitCompiler interface as we can see from coreclr source.

Figure 9: getJit implementation in coreclr

The returned pointer points to the vtable of the class (CILJit ) implementing the interface. The first member in the vtable is the address of the compileMethod function. This function is called by the Execution Engine to convert the IL code of a method to native code.

Figure 10: The compileMethod function

Back in IdentifyLocals , it overwrites the vtable entry of compileMethod with the address of IncrementMaxStack. Thus, from now on any call to the former will call the latter instead. The original compileMethod function is saved in originalDelegate.

Figure 11: Overwriting the vtable entry of compileMethod

IncrementMaxStack is thus the compileMethod hook.

Figure 12: IncrementMaxStack method implementing the hook

The hook will be called by the runtime for every method when JITing. The code above checks whether the MetadataToken of the method to JIT equals 100663317 or 100663316. If so, it proceeds to make some modifications to the IL. Finally, it calls the original compileMethod on the modified(or unmodified) IL. This is a clever way to modify the functionality of a program at run-time. Let's go ahead and make the necessary changes to the IL of the corresponding methods so we can do away with the hook.

Undoing the compileMethod hook

100663317 (0x06000015) is the token for method Program.h as shown in Figure 13.

Figure 13: Program.h

The compileMethod hook writes the value 20 at offsets 23 (0x17) and 62 (0x3e). Let's check the offsets in the IL editor.

Figure 14: IL at offset 23 in Program.h
Figure 15: IL at offset 62 in Program.h

Both of the offsets point within a call instruction. The ECMA-335 specification say this instruction takes a single parameter - the metadata token of the method to call.

Figure 16: The call instruction described

Originally it calls Program.f which has a token 0x06000013. Writing 20 (0x14) changes the token to 0x06000014 which is for Program.g (the operands are stored in little endian byte order). Let's go ahead and change the target of the call to Program.g in the IL editor. Our decompiled code of Program.h now looks like Figure 17.

Figure 17: Call target changed to Program.g

The second change done by the hook is in method Program.g with a token of 100663316 (0x06000014).

Figure 18: Program.g

At offsets 6 and 18 (0x12) it writes the Int32 value of 309030853 and 209897853 respectively (Figure 12). At both of these offsets we find a ldc.i4 instruction.

Figure 19: IL offsets 6 and 0x12 in Program.g

As per the ECMA-335 standard this instruction pushes a int32 numeric constant onto the stack.

Figure 20: The ldc.i4 instruction described

By writing to offsets 6 and 18, the hook is thus modifying the operand of the ldc.i4 instruction. In the same way as we did before, we can make the changes in the IL editor to make the decompiled code as in Figure 21.

Figure 21: The constants in Program.g has been changed

The second "trick"

Let's go back to Init from where we started. After the call to CalculateStack (Figure 5) the code loops over all the methods in Program. It obtains the method body as a byte array and calls d.a on it.

Figure 22: Looping over all methods

The d.a method calculates a hash value of the byte array passed to it as shown in Figure 23.

Figure 24: The a method calculates the hash

The returned hash value is then compared to 3472577156, 2689456752, 3040029055, 2663056498. So all in all its searching for 4 methods with the said hashes. Finally it calls VerifySignature.

Figure 25: Call to VerifySignature

VerifySignature forces the methods to be JIT compiled by calling RuntimeHelpers.PrepareMethodon the method handles.

Figure 26: Changing the implementation of a method

The last three lines changes the method pointer of m1 to point to m2. As a result calling m1 from now on will call m2 instead. For details check this blog post.

At this point we don't yet know the two methods whose pointer's are changed. Let's debug the binary in dnSpy as shown in Figure 27.

Figure 27: Setting up debugging in dnSpy

However it immediately crashes with a stack overflow exception.

Figure 28: Crashed!

The reason for the exception is because of the compileMethod hook. To debug successfully, we need to remove the hook which can be done by bypassing the call to A.CalculateStack in Init. Set a breakpoint on the line before debugging. When the breakpoint hits, right click on the next line and use "Set Next Statement" to bypass the call.

Figure 29: Bypassing call to CalculateStack

We can set another breakpoint on the call to A.VerifySignature. This will help us to find out the arguments passed to the method.

Figure 30: Breakpoint on VerifySignature

m, m2, m3, m4 are methods a, b, c and d respectively. The method pointer of a is replaced with that of b, and c is replaced with d.

We can make all of the above changes in the same way using the IL editor by changing the call target to b and d whenever we spot a call to a and c respectively. There are the only two places where we need to make the change and both of them are in the method h.

Figure 31: Calls to a and c

The calls to a and c are on lines 12 and 15 needs to be changed to b and d respectively. That's all of the tricks in the binary. Let's analyze the main logic.

Reversing the encoding logic

Figure 32: Program.i

From main we have a call to method i which takes a bitmap and a byte array as parameters. This method encodes the data within the given bitmap hiding the data in the red, green and blue color values of the pixels. The logic is slightly obfuscated with the constants replaced by a call to Program.j  which calculates them at runtime. We can easily get back the original constants by debugging the binary. Ensure that the binary is free from the compileMethod hook and all the IL modifications "tricks" are correctly applied.

Set a breakpoint on the first line in the method Program.i and start debugging with the necessary command line parameters(input.bmp test.txt output.bmp). Once the breakpoint hits, we can go to the watch window and enter the expressions whose value we want to calculate as in Figure 33.

Figure 33: Using watch to recover the constants

Our updated Program.i method now looks like

public static void encode(Bitmap bm, byte[] data)
{
  int num = 0;
  for (int i = 0; i < bm.Width; i++)
  {
    for (int j = 0; j < bm.Height; j++)
    {
        if (num > data.Length - 1)
        {
            break;
        }
        Color pixel = bm.GetPixel(i, j);

        int red = (pixel.R & 248) | (data[num] & 7);
        int green = (pixel.G & 248) | (data[num] >> 3 & 7);
        int blue = (pixel.B & 252) | (data[num] >> 6 & 3);

        Color color = Color.FromArgb(0, red, green, blue);
        bm.SetPixel(i, j, color);
        num += 1;
    }
  }
}

Studying the code, we can understand how it encodes the data in the pixels. It encodes the information in the least significant bits of the RGB values so that it's not visible to the naked eye.  A byte is comprised of 8 bits. The last 3 bits goes into red, next 3 to green and the remaining 2 to blue.

We have been provided with a bitmap image.bmp. We can recover the encoded data stored in it using the following cs-script.

//decodeimage.cs
using System;
using System.Drawing;
using System.IO;

class decodeimage
{
  public static void Main()
  {
    string image_file = "image.bmp";
    Bitmap bmp = new Bitmap(image_file);

    byte[] ct = new byte[bmp.Width*bmp.Height];

    int num = 0;
    for (int i = 0; i < bmp.Width; i++)
    {
      for (int j = 0; j < bmp.Height; j++)
      {
        Color pixel = bmp.GetPixel(i, j);

        byte bits_2_0 = (byte)(pixel.R & 7);
        byte bits_5_3 = (byte)(pixel.G & 7);
        byte bits_7_6 = (byte)(pixel.B & 3);

        ct[num] = (byte)((bits_7_6 <<6) | (bits_5_3 <<3)  | bits_2_0);
        num++;
      }
    }
    File.WriteAllBytes("ct.bin", ct);
  }
}

The recovered data doesn't represent anything meaningful as it's encrypted as shown in Figure 34.

Figure 34: The data encoded in the image

Reversing the encryption

To get back the original data we need to decrypt the recovered data. One way to do that is by studying the encryption logic and try to develop a decrypter. However, we will take a shortcut and bruteforce the original data instead. In other words we will encrypt all possible values that a byte can take (256 values) reusing the logic from the decompiled code. If the encrypted value matches, then our byte is correct.

//decrypt.cs
using System;
using System.Drawing;
using System.IO;

class decrypt {
  public static byte b(byte b, int r)  {/*snip*/}
  public static byte d(byte b, int r)  {/*snip*/}
  public static byte e(byte b, byte k) {/*snip*/}
  public static byte g(int idx) {/*snip*/}

  public static void Main() {
    byte[] ct = File.ReadAllBytes("ct.bin");
    byte[] pt = new byte[ct.Length];
    int num_backup = 0;

    for (int i = 0; i < ct.Length; i++) {
      for(byte xxx = 0; xxx <= 255; xxx++) {
        int num = num_backup;
        int num2 = g(num++);
        int num3 = xxx;
        num3 = e((byte)num3, (byte)num2);
        num3 = b((byte)num3, 7);
        int num4 = g(num++);
        num3 = e((byte)num3, (byte)num4);
        num3 = d((byte)num3, 3);

        if(ct[i] == (byte)num3) {
          pt[i] = xxx;
          num_backup = num;
          break;
        }
      }
    }
    File.WriteAllBytes("pt.bin", pt);
  }
}

To keep it readable, I have not shown the entire code above. Running our decrypter we get a file with a BMP header which looks like Figure 35.

Figure 35: The encoded data is a BMP!

Since the encoded data is a bitmap, it's possible that some data has been hidden inside it as well. In the same way as we did earlier, let's recover the encoded data in it.

Figure 36: The flag

This time we get another BMP containing the flag.

Flag: d0nT_tRu$t_vEr1fy@flare-on.com
